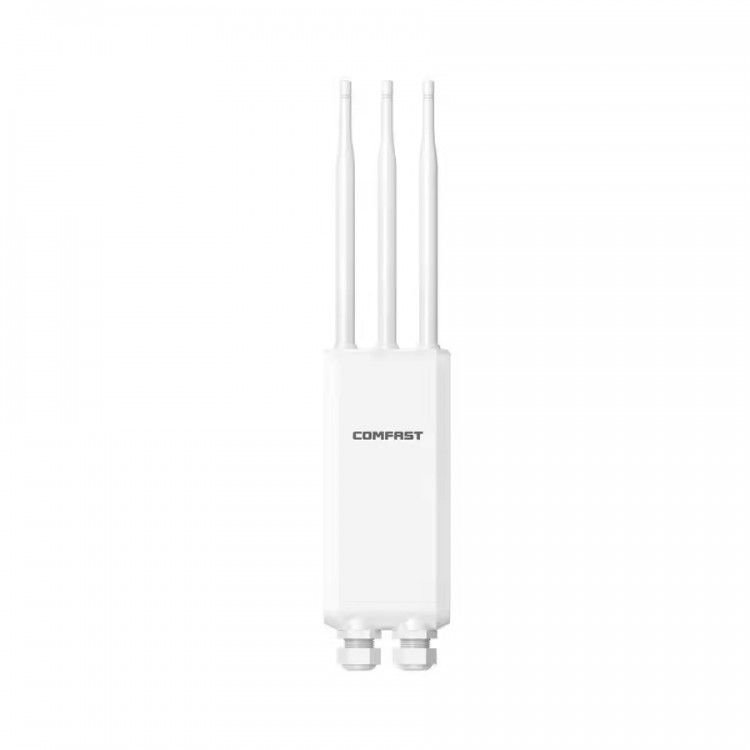

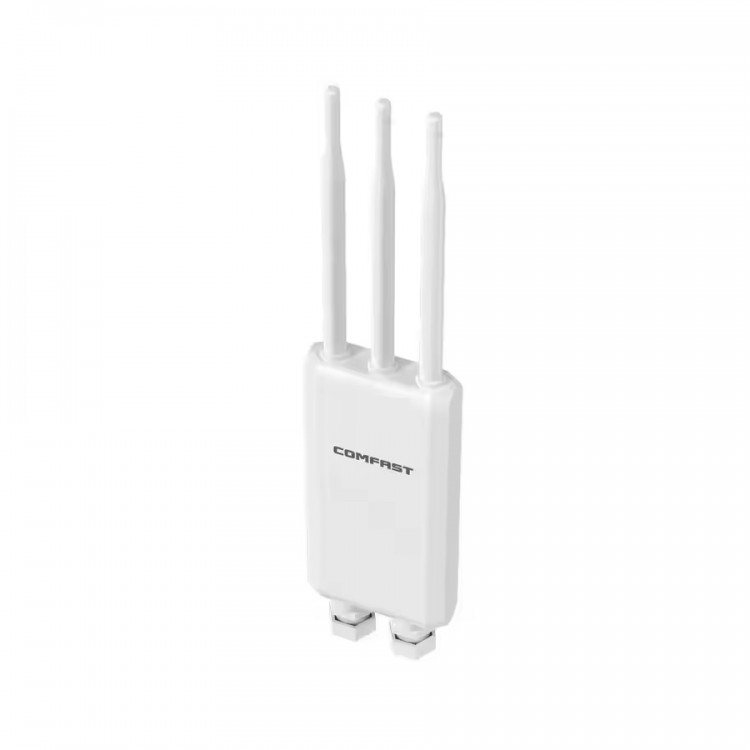

Comfast CF-EW85 V2 Dual Dand 2.4G 5Ghz Long Range Wifi Extender Antenna Outdoor Wireless AP

Comfast High Power AC1300 Outdoor Wireless Wifi Repeater AP Router 1300Mbps Dual Dand 2.4G 5Ghz Long Range Wifi Extender Antenna

Outdoor Wifi Access Point Description:

CF-EW85 is a dual-band 1300Mbps gigabit port wireless transmission rate of high-power outdoor AP, professional outdoor shell design, external waterproof antenna waterproof, 3 high gain omni-directional antenna to ensure that the signal 360 ° full coverage. Its high standard ensures that the device can be used in large outdoor places such as plazas, resorts, scenic spots and so on. support DC Power supply  and poe power supply .

Note:

The distance "300-500M" mean no obstacles environment ;

There are many factors that affect distance, such as obstacles(trees, walls, buildings, trucks, etc.), original network signals, etc. If you want the good signal, we suggest you try best to avoid the obstacles when install the antenna.

Outdoor Wifi Antenna Specification:

1.Brand Name: comfast

2.Model Number: CF-EW85V2

3.Chipset:QCA9563+QCA9886+QCA8337 Chipset ,RAM : 128MB ; Flash : 16MB ;

4.RF Parameters:800mW (29dBm) Transmitting Power

5.Antenna:3*5dBi External antenna ；

6.Wi-Fi Transmission Rate: 2.4Ghz : 450Mbps ;5Ghz : 867Mbps ;

7.Maximum receiving sensitivity ：-96dBm

8.Working frequency : 802.11b/g/n/a/an/ac : 2.412GHz-2.484GHz ;

9.Physical interface : 1*10/100/1000Mbps WAN RJ45 Ethernet port , 2*10/100 LAN RJ45 Ethernet port (Support POE power supply) , 1*RESET Button ; 1* DC Button

10.Indicator light ：Power / WAN / LAN / WiFi indicators ；

11.Power supply ：POE power supply ,support 802.3af / 802.3at standard (Up to 100 meters）；Power adapter supply :

12.Power Consumption:<18W

13.Lightning protection; IP66 Level

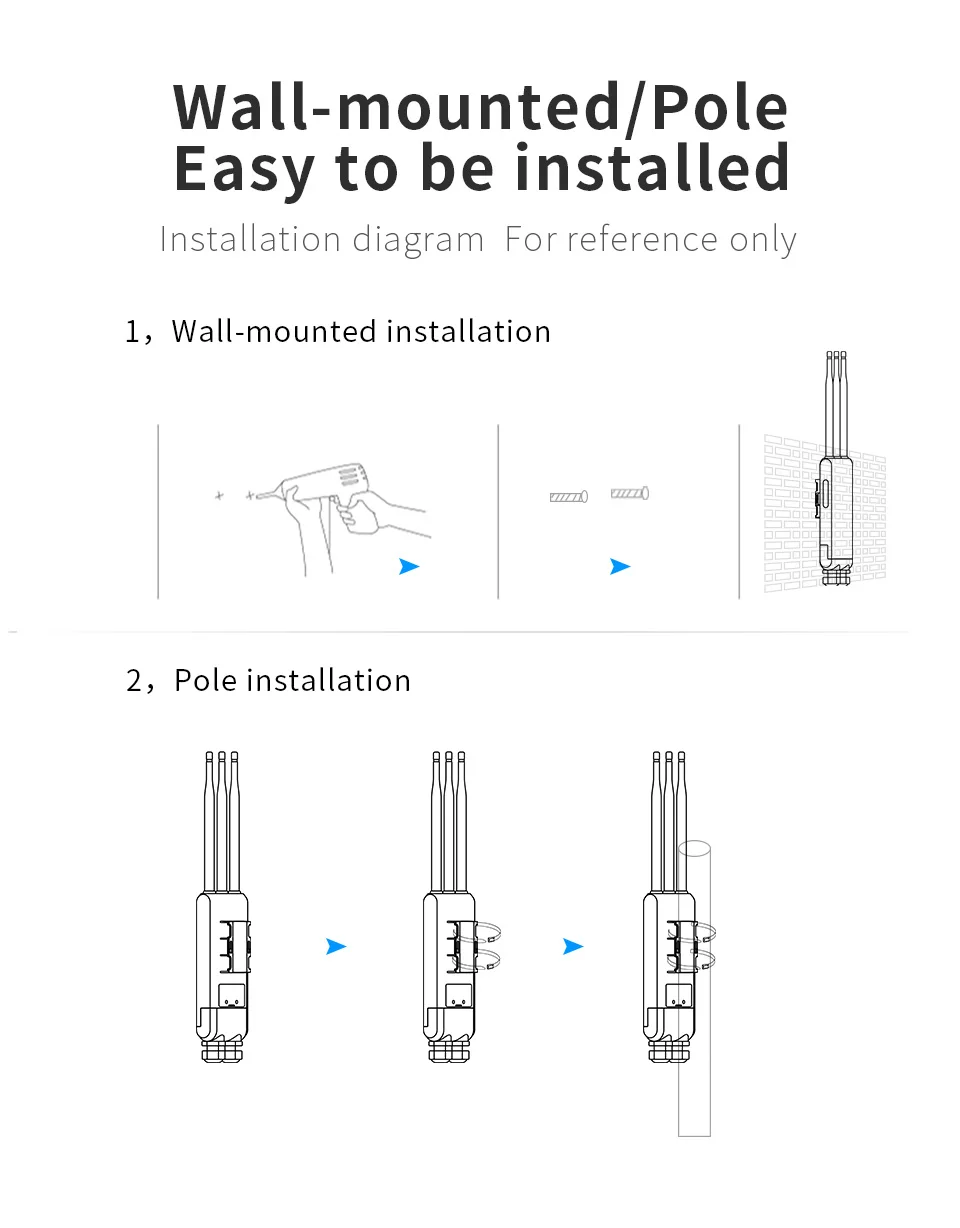

14.Installation method :Pole installation, wall installation；

15.Product Size: 90*388*188mm

16.Working Environment:Working Temperature: -40'C~55"C

Storage Temperature: -40"C~70'C

Working Humidity: 10%~90%RH No-condensing

Storage Humidity: 5%~95%RH No-condensing

17.Application : Application for park / school / Driving school / Plant area / Shopping mall / Village

Package Contents:

1* 1300Mbps Outdoor Acces Point AP

2* screws

1* POE power supply

1* stainless steel cable tie

1* manual
